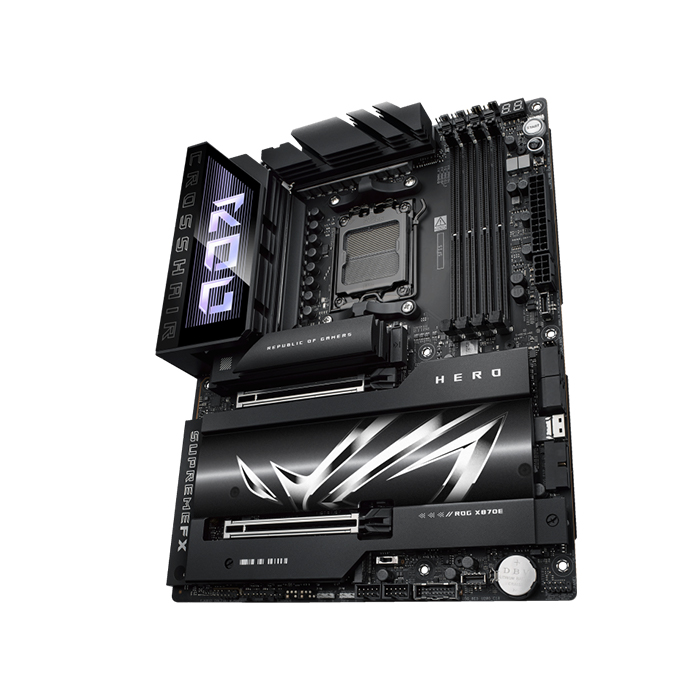

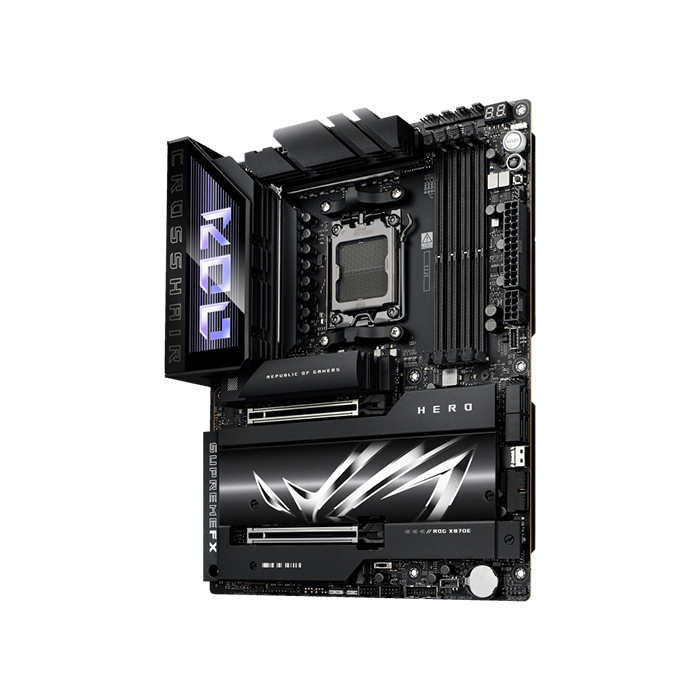

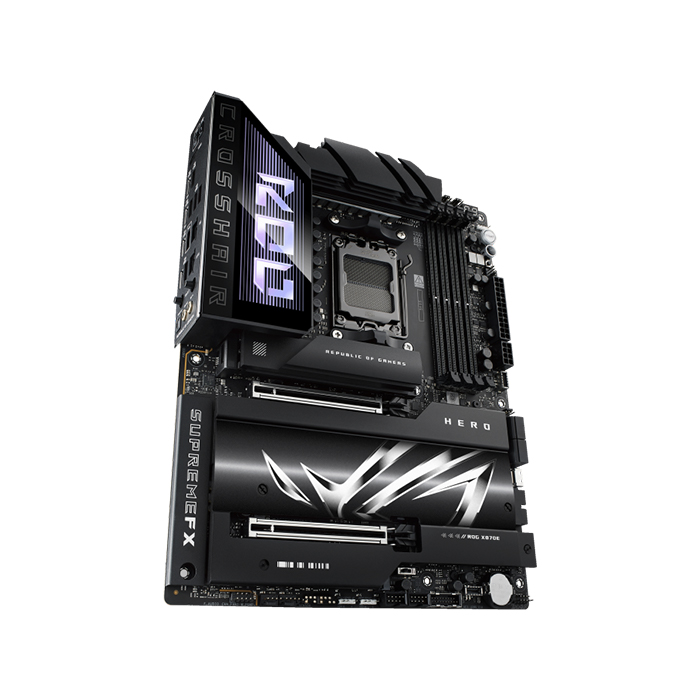

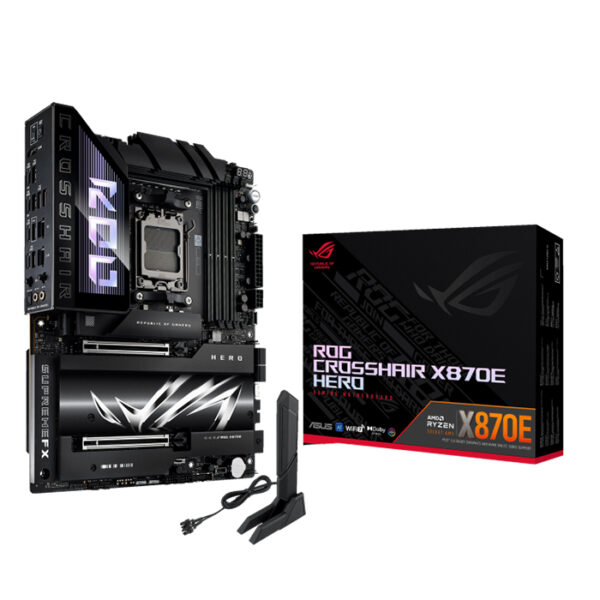

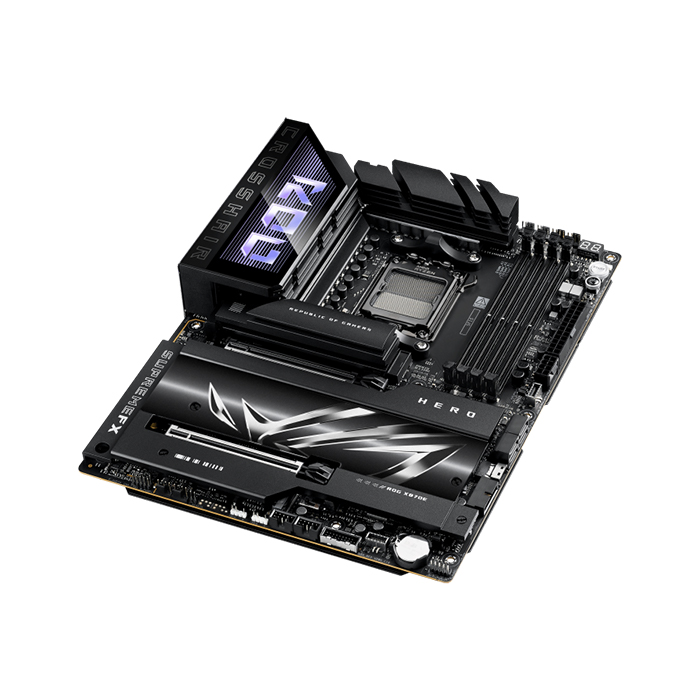

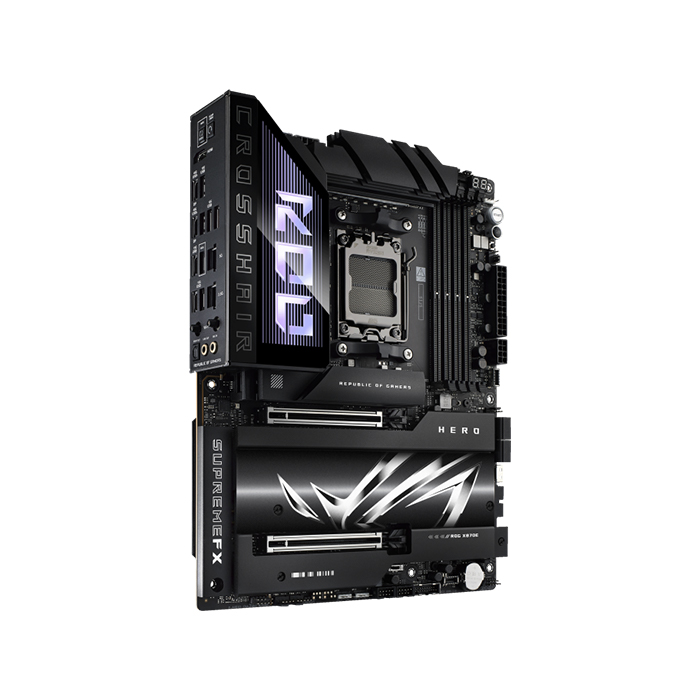

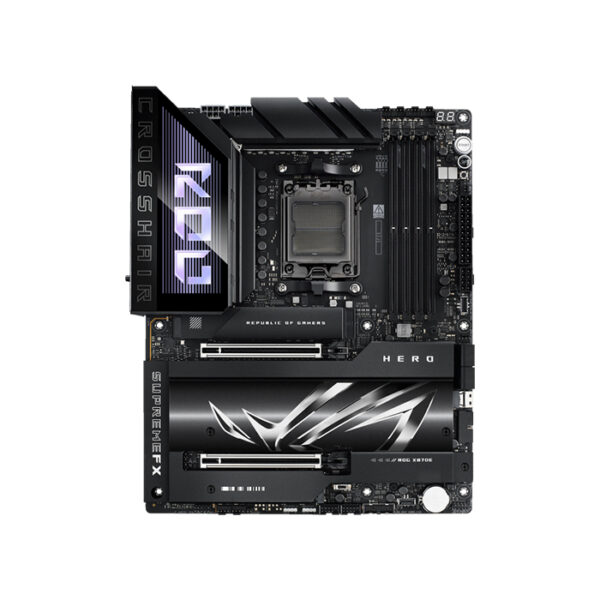

ASUS ROG CROSSHAIR X870E HERO AM5 DDR5 ATX Motherboard – Black
د.ك 239.000
Key Features
- Part No. : 90MB1IE0-M0EAY0
- SKU No. : TNC-002603N
- Brand : Asus
- Socket Type : AMD 5
- Form Factor : ATX
- Memory Type : DDR 5
- Wi-Fi : Yes
- Description
Description
| Part No. | 90MB1IE0-M0EAY0 |
| Brand | Asus |
| CPU | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* |
| Chipset | AMD X870E |
| Memory | 4 x DIMM slots, max.256GB, DDR5 |
| Supports up to | |
| 8200+MT/s(OC) with Ryzen™ 9000 Series Processors, | |
| 8600+MT/s(OC) with Ryzen™ 8000 Series Processors, | |
| 8000+MT/s(OC) with Ryzen™ 7000 Series Processors, | |
| ECC and Non-ECC, Un-buffered Memory* | |
| Dual channel memory architecture | |
| Supports AMD Extended Profiles for Overclocking (EXPO™) | |
| NitroPath DRAM Technology | |
| ASUS Enhanced Memory Profile (AEMP) | |
| Graphics | 1 x HDMI™ port* |
| 2 x USB4® (40Gbps) ports support USB Type-C® display outputs** | |
| Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. | |
| VGA resolution support depends on processors’ or graphic cards’ resolution. | |
| Expansion Slots | AMD Ryzen™ 9000 & 7000 Series Desktop Processors* |
| 2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8** or x8/x4/x4 modes***) | |
| AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors* | |
| 2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16_1 & total bandwidth for x8, PCIEx16_2 will be disabled) | |
| AMD Ryzen™ 8500 & 8300 Series Desktop Processors* | |
| 2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16_1 & total bandwidth for x4, PCIEx16_2 will be disabled) | |
| Storage | Supports 5 x M.2 slots and 1 x SlimSAS connector and 4 x SATA 6Gb/s ports* |
| AMD Ryzen™ 9000 & 7000 Series Desktop Processors | |
| M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) | |
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) | |
| M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) | |
| AMD Ryzen™ 8000 Series Desktop Processors | |
| M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
| M.2_2 slot (Key M), type 2242/2260/2280 (Not supports) | |
| M.2_3 slot (Key M), type 2242/2260/2280 (Not supports) | |
| AMD X870E Chipset | |
| M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
| M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) | |
| SlimSAS slot supports PCIe 4.0 x4 mode. | |
| 4 x SATA 6Gb/s ports | |
| AMD RAIDXpert2 Technology | |
| Ryzen™ 9000 Series Processors: RAID 0/1/5/10 | |
| Ryzen™ 8000 Series Processors: RAID 0/1 | |
| Ryzen™ 7000 Series Processors: RAID 0/1/10 | |
| Ethernet | 1 x Intel® 2.5Gb Ethernet |
| 1 x Realtek 5Gb Ethernet | |
| ASUS LANGuard | |
| Wireless & Bluetooth | Wi-Fi 7* |
| 2×2 Wi-Fi 7 (802.11be) | |
| Supports 2.4/5/6GHz frequency band** | |
| Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate. | |
| Bluetooth® v5.4*** | |
| For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. | |
| For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor’s website for details. | |
| USB | Rear USB (Total 10 ports) |
| 2 x USB4® (40Gbps) ports (2 x USB Type-C®) | |
| 8 x USB 10Gbps ports (6 x Type-A + 2 x USB Type-C®) | |
| Front USB (Total 10 ports) | |
| 1 x USB 20Gbps (supports USB Type-C® with up to 60W PD/QC4+)* | |
| 1 x USB 20Gbps connector (supports USB Type-C®) | |
| 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports | |
| 2 x USB 2.0 headers support 4 additional USB 2.0 ports | |
| USB Type-C® power delivery output: max. 5V/3A | |
| *USB Type-C® power delivery output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A | |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082* |
| – Impedance sense for front and rear headphone outputs | |
| – Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking | |
| – High quality 120 dB SNR stereo playback output and 110 dB SNR recording input | |
| – Supports up to 32-Bit/384 kHz playback on front panel | |
| Audio Features | |
| – SupremeFX Shielding Technology | |
| – ESS® ES9219 QUAD DAC | |
| – Gold-plated audio jacks | |
| – Rear optical S/PDIF out port | |
| – Premium audio capacitors | |
| Back Panel I/O Ports | 2 x USB4® (40Gbps) ports (2 x USB Type-C®) |
| 8 x USB 10Gbps ports (6 x Type-A + 2 x USB Type-C®) | |
| 1 x HDMI™ port | |
| 1 x Wi-Fi module | |
| 1 x Intel® 2.5Gb Ethernet port | |
| 1 x Realtek 5Gb Ethernet port | |
| 2 x Gold-plated audio jacks | |
| 1 x Optical S/PDIF out port | |
| 1 x BIOS FlashBack™ button | |
| 1 x Clear CMOS button | |
| Internal I/O Connectors | Fan and Cooling Related |
| 1 x 4-pin CPU Fan header | |
| 1 x 4-pin CPU OPT Fan header | |
| 1 x 4-pin AIO Pump header | |
| 4 x 4-pin Chassis Fan headers | |
| 1 x W_PUMP+ header | |
| Power Related | |
| 1 x 24-pin Main Power connector | |
| 2 x 8-pin +12V CPU Power connector | |
| 1 x 8-pin PCIe Power connector | |
| Storage Related | |
| 5 x M.2 slots (Key M) | |
| 1 x SlimSAS connector | |
| 4 x SATA 6Gb/s ports | |
| USB | |
| 2 x USB 20Gbps connectors (support USB Type-C® ) | |
| 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports | |
| 2 x USB 2.0 headers support 4 additional USB 2.0 ports | |
| Miscellaneous | |
| 3 x Addressable Gen2 headers | |
| 1 x Alteration PCIe mode switch | |
| 1 x FlexKey button | |
| 1 x Front Panel Audio header (F_AUDIO) | |
| 1 x ReTry button | |
| 1 x Start button | |
| 1 x 10-1 pin System Panel header | |
| 1 x Thermal Sensor header | |
| 1 x LN2 Mode jumper | |
| Special Features | Extreme OC Kit |
| – FlexKey button | |
| – LN2 Mode | |
| – ReTry button | |
| – Start button | |
| Extreme Engine Digi+ | |
| – 10K Black metallic capacitors | |
| – MicroFine alloy choke | |
| ASUS Q-Design | |
| – M.2 Q-Latch | |
| – M.2 Q-Release | |
| – M.2 Q-Slide | |
| – Q-Release Slim (with PCIe SafeSlot) | |
| – Q-Antenna | |
| – Q-Code | |
| – Q-Connector | |
| – Q-Dashboard | |
| – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) | |
| – Q-Slot | |
| ASUS Thermal Solution | |
| – M.2 heatsink backplate | |
| – M.2 heatsink | |
| – VRM heatsink design | |
| – Metal backplate | |
| ASUS EZ DIY | |
| – Backplate | |
| – BIOS FlashBack™ button | |
| – Clear CMOS button | |
| – ProCool II | |
| – Pre-mounted I/O shield | |
| – SafeSlot | |
| – SafeDIMM | |
| Aura Sync | |
| – Addressable Gen2 header(s) | |
| Front Panel USB 20Gbps with Quick Charge 4+ Support | |
| – Support: up to 60W fast charging and USB Wattage Watcher* | |
| – Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A | |
| – Compatible with PD3.0 and PPS | |
| Software Features | ROG Exclusive Software |
| – ROG CPU-Z | |
| – Dolby Atmos | |
| – Internet Security (1-year full version) | |
| – Polymo Lighting II | |
| ASUS Exclusive Software | |
| Armoury Crate | |
| – AIDA64 Extreme (1 year full version) | |
| – Aura Creator | |
| – Aura Sync | |
| -Fan Xpert 4 (with AI Cooling II) | |
| – GameFirst | |
| – HWiNFO | |
| – Power Saving | |
| ASUS DriverHub | |
| ASUS GlideX | |
| USB Wattage Watcher | |
| TurboV Core | |
| WinRAR (40 Days Free Trial) | |
| Adobe Creative Cloud (Free Trial) | |
| UEFI BIOS | |
| AI Overclocking Guide | |
| ASUS EZ DIY | |
| – ASUS CrashFree BIOS 3 | |
| – ASUS EZ Flash 3 | |
| – ASUS UEFI BIOS EZ Mode | |
| – ASUS MyHotkey | |
| FlexKey | |
| BIOS | 256Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | Cables |
| 1 x ARGB RGB extension cable | |
| 4 x SATA 6Gb/s cables | |
| Miscellaneous | |
| 1 x ASUS WiFi Q-Antenna | |
| 1 x Q-connector | |
| 2 x M.2 Q-Latch package | |
| 3 x M.2 Q-Slide package | |
| 5 x M.2 rubber package | |
| 1 x ROG stickers | |
| 1 x ROG thank you card | |
| 1 x ROG Bottle Opener | |
| Installation Media | |
| 1 x USB drive with utilities and drivers | |
| Documentation | |
| 1 x Quick start guide | |
| Operating System | Windows® 11 |
| Form Factor | ATX Form Factor |
| 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
